    The monocular microscope is used for very thin specimens. It's about 500 times better than the human eye.

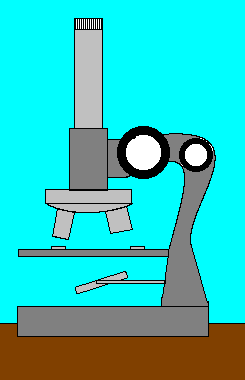

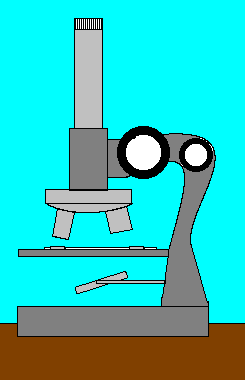

    Parts of the Microscope.
    • Run your mouse over the diagram. As the cursor passes over the various parts of the microscope it will change. Click to find out more about the part
    Correct Use of the Microscope.
    • When you carry it, support the base with one hand and the arm with the other.
    • Many microscopes use an external lamp. If yours is one, make sure that the light and mirror are set up correctly.
    • To focus on an object
      • Place your slide in the clips
      • Begin with the lowest power objective (usually the shortest one)
      • Before you look down the tube, use the coarse focus knob to move the nosepiece down as close to the stage as you can without grinding through the slide.
      • Only now put your eye to the eyepiece, and use the coarse focus knob to bring the lens UP until the image is in focus.
      • Now use the fine focus to completely focus the image.
